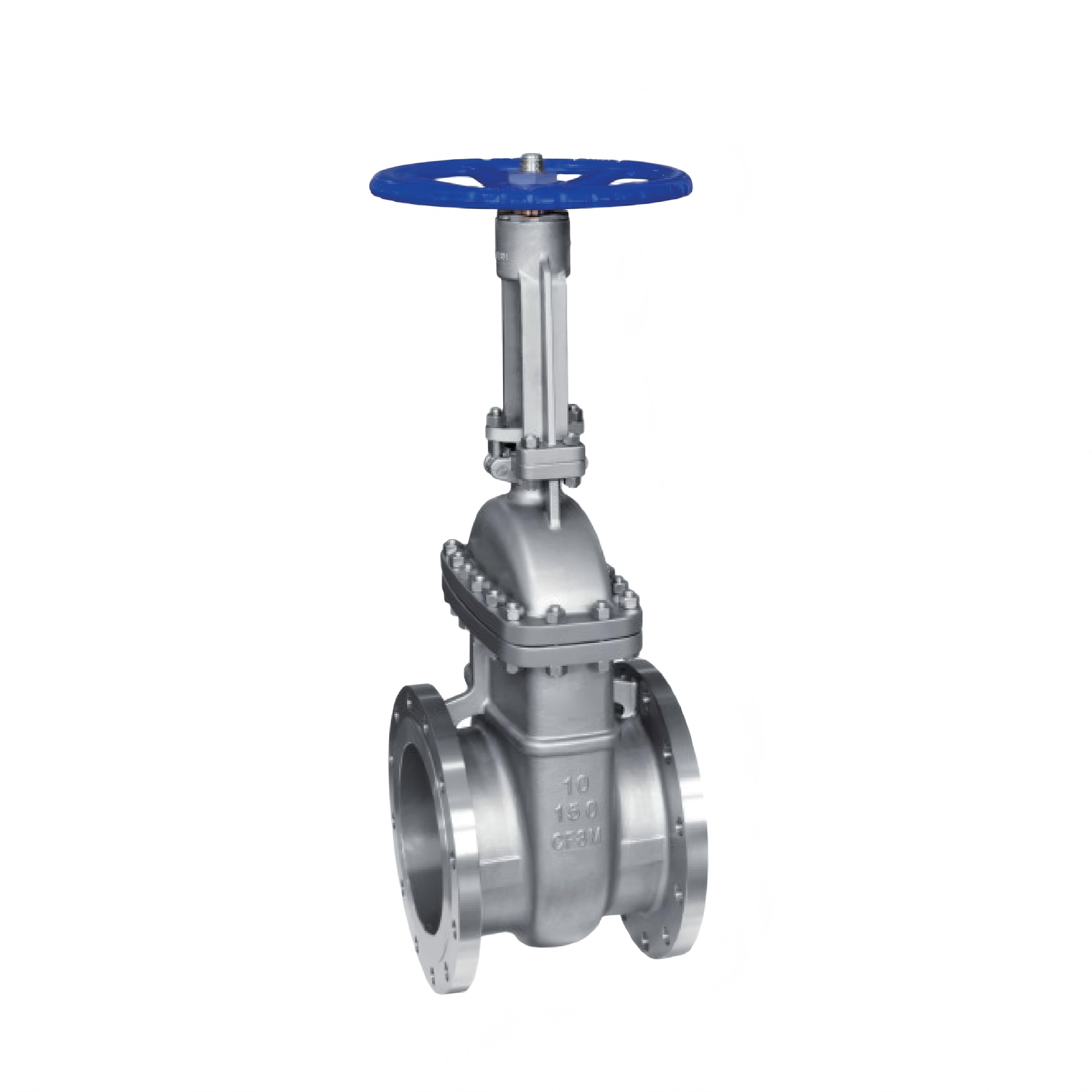

Our High Performance Gate Valve is a heavy-duty industrial linear motion valve designed for full open and full closed pipeline fluid isolation. Built with high-strength valve body and precision sealing components, this industrial gate valve delivers outstanding pressure resistance, abrasion resistance and zero-leak performance. It ensures stable on/off control for liquid, gas and steam media, widely used for reliable pipeline isolation in various heavy industrial projects.

Category: Gate Valve

Description

Features

Fluid resistance is small.
It is more labor-saving when opening and closing.
The flow direction is generally unrestricted, Easy to install.
Rational structure, reliable sealing, excellent performance, pretty appearance.

Design Standards

Design and manufacture: GB/T 12234、 ASME B16.34、 API 600
Connecting flanges: HG/T 20592、 ASME B16.5、 JIS B2220, EN 1092-1
Structure length: GB/T 12221、 ASME B16.10, EN 558-1.
Inspection and test: GB/T 26480, GB/T 13927、 API 598

Specifications

Nominal pressure: (1.6-32)MPa, (150-2500)LB, (10-40)K
Shell test: PT 1.5PN
Back seal test: PT 1.1PN
High pressure seal test: PT 1.1PN
Gas seal test: 0.6 MPa

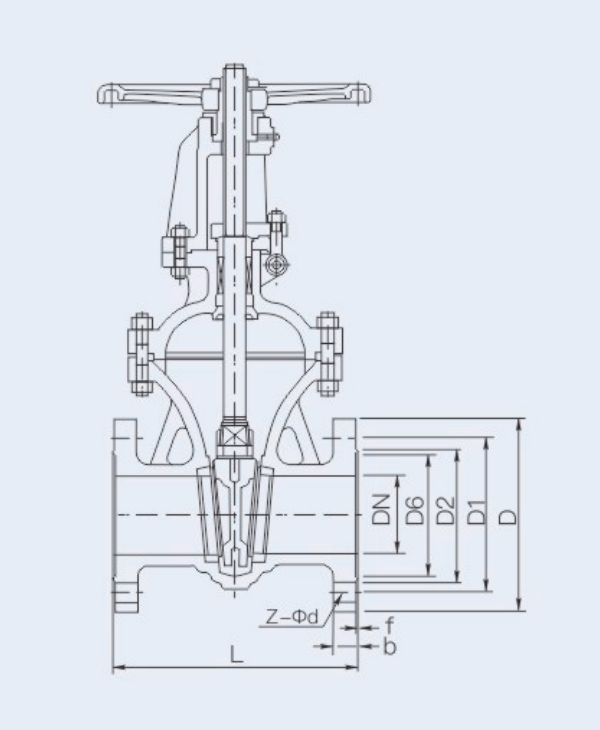

Drawing

Drawing

Material

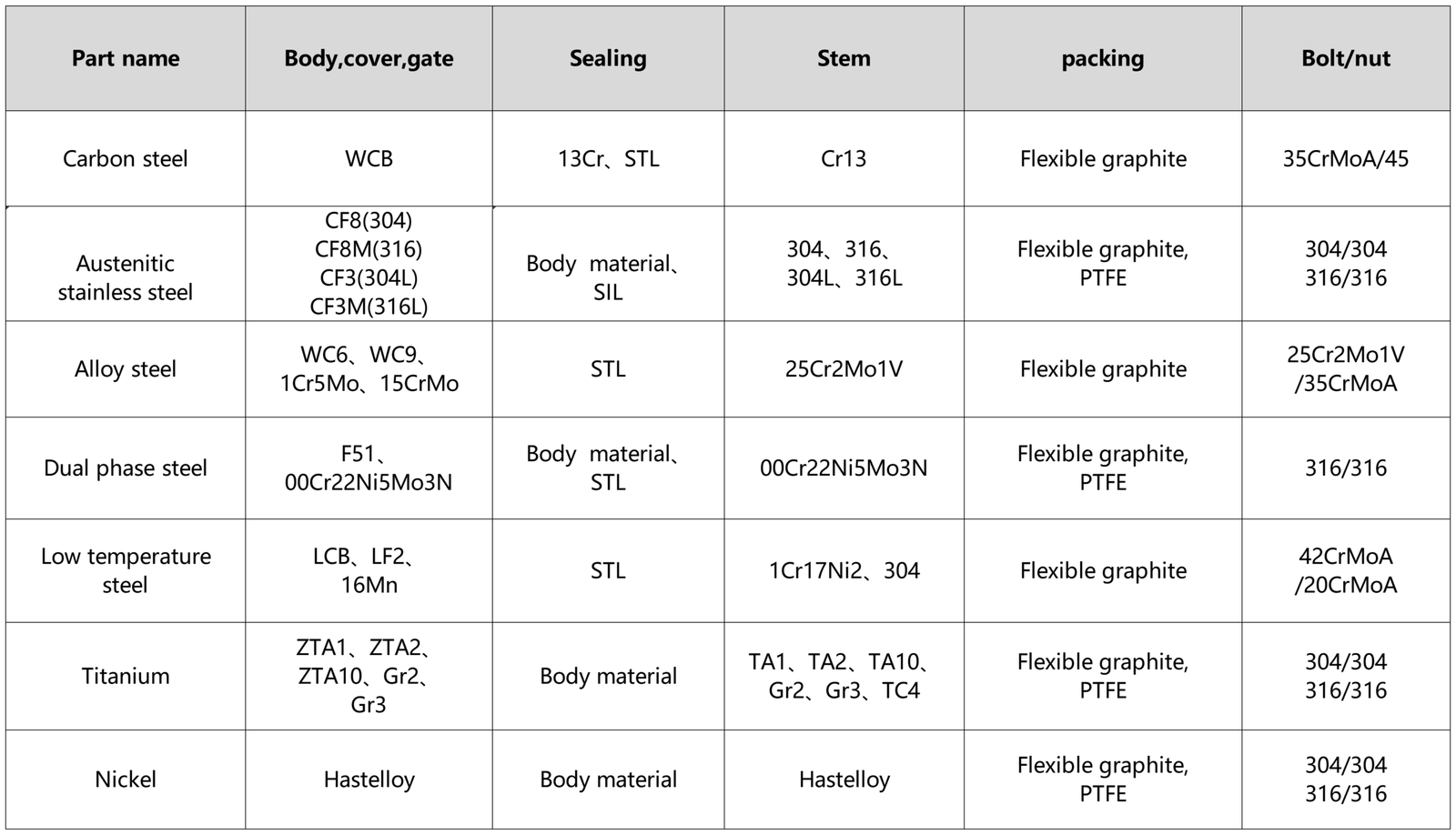

FORM OF MAJOR PARTS MATERIALS

Dimension

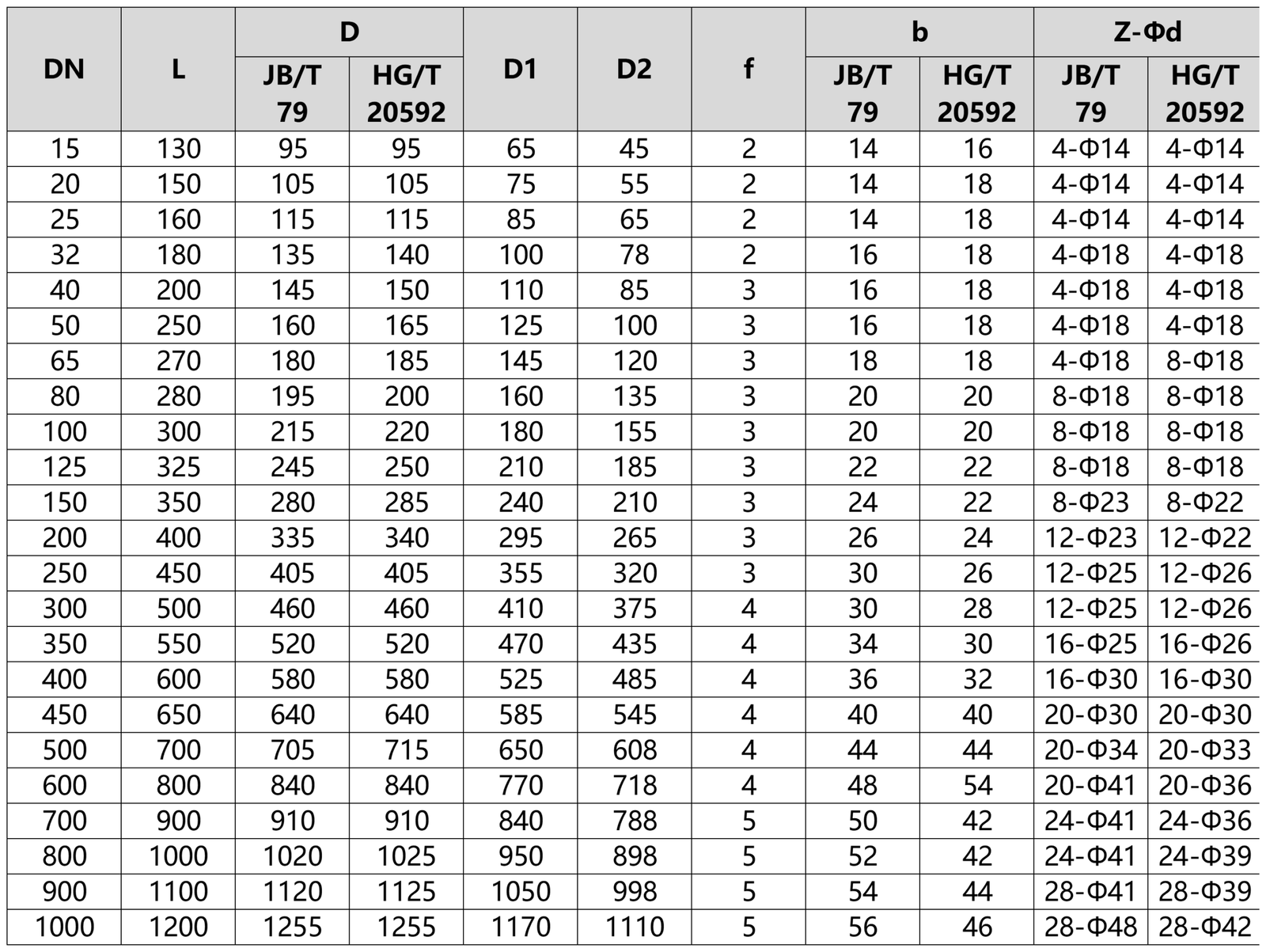

THE MAIN DIMENSIONS AND CONNECTION DIMENSIONS

Contact us for more details
