Features
- Connection : Flanged to EN1092-2, BS4504, ASME B16.10.AS4087
- Working pressure : PN10/PN16/ PN25
- Temperature range :O-80°C
- Fusion bonded epoxy coating

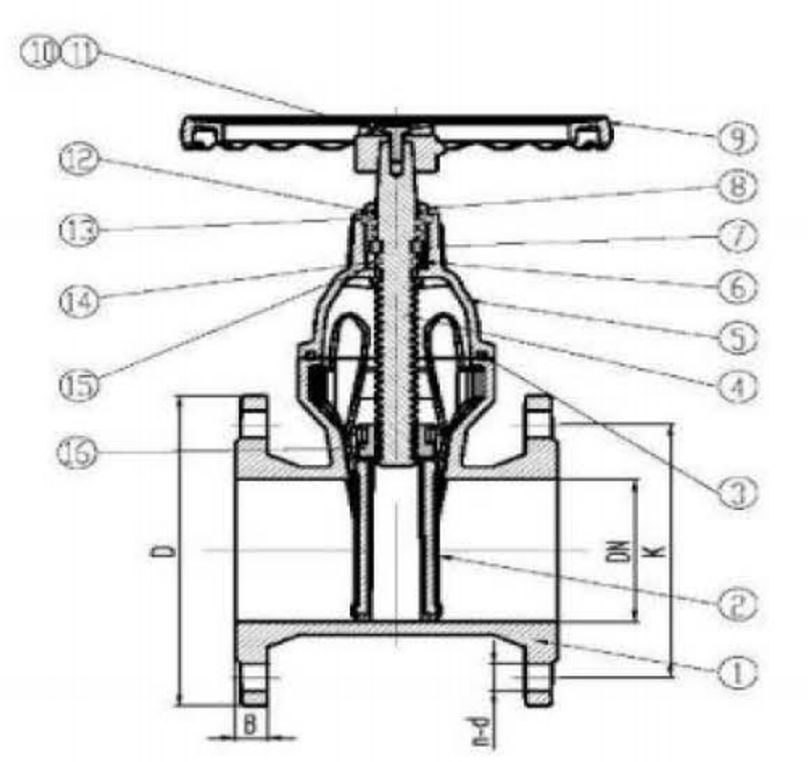

Drawing

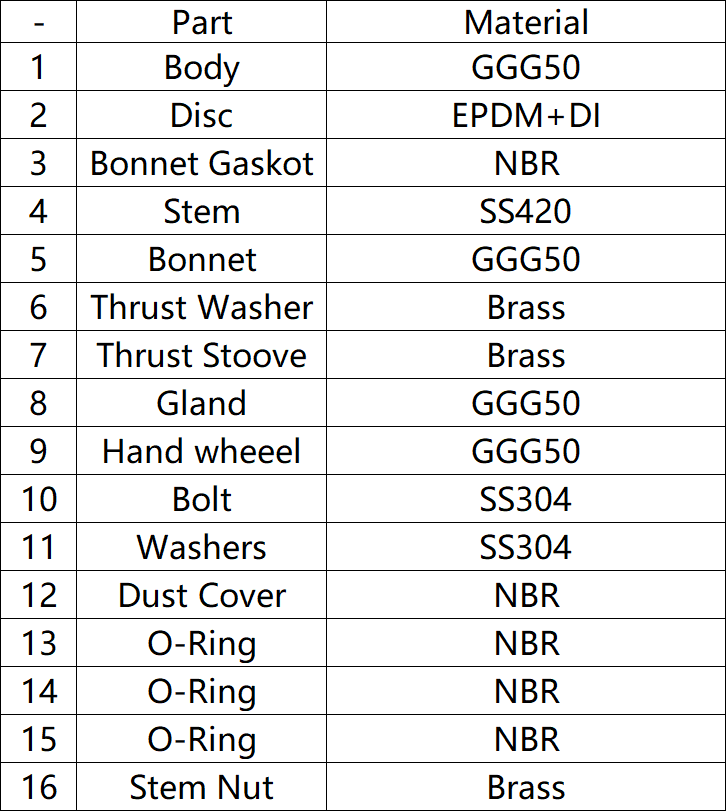

Material

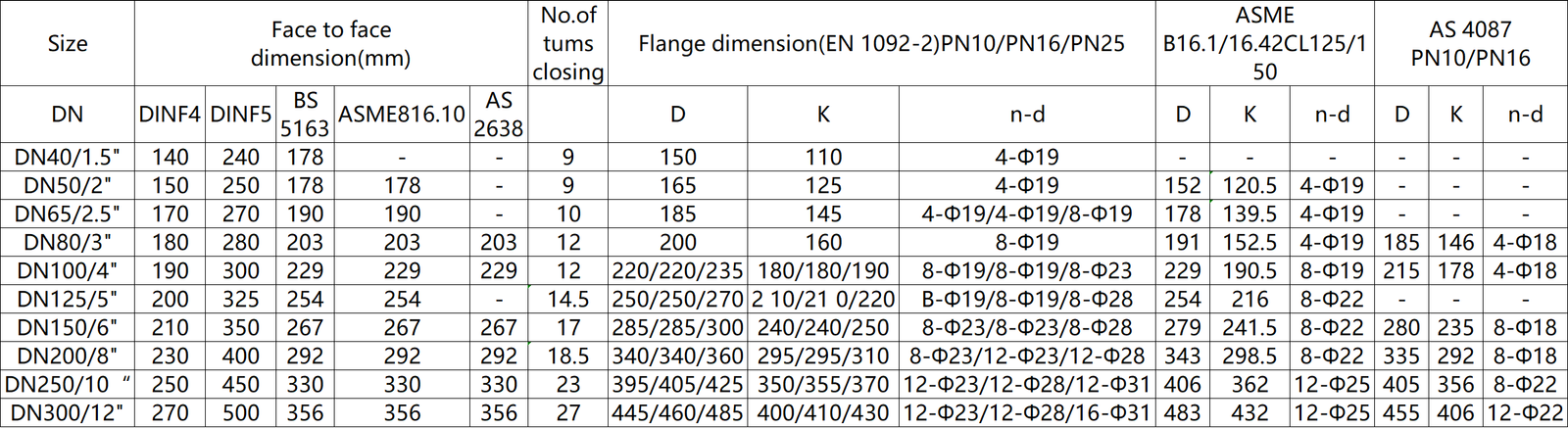

Dimension
Gate Valve

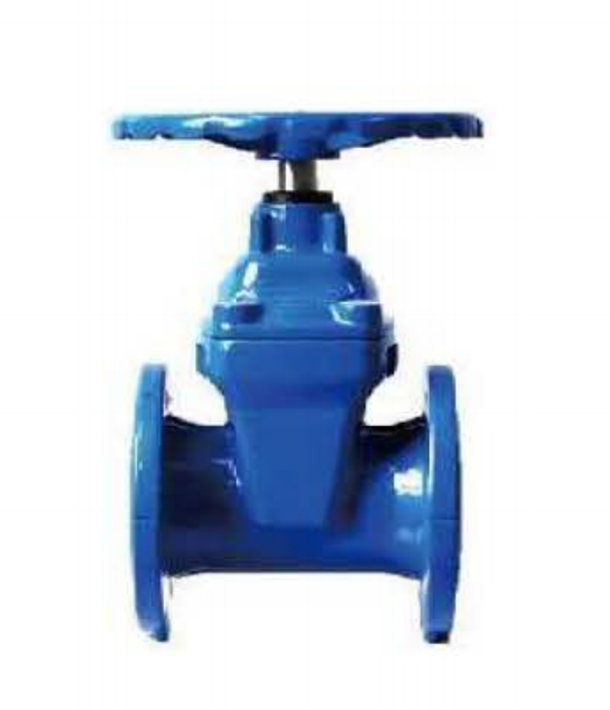

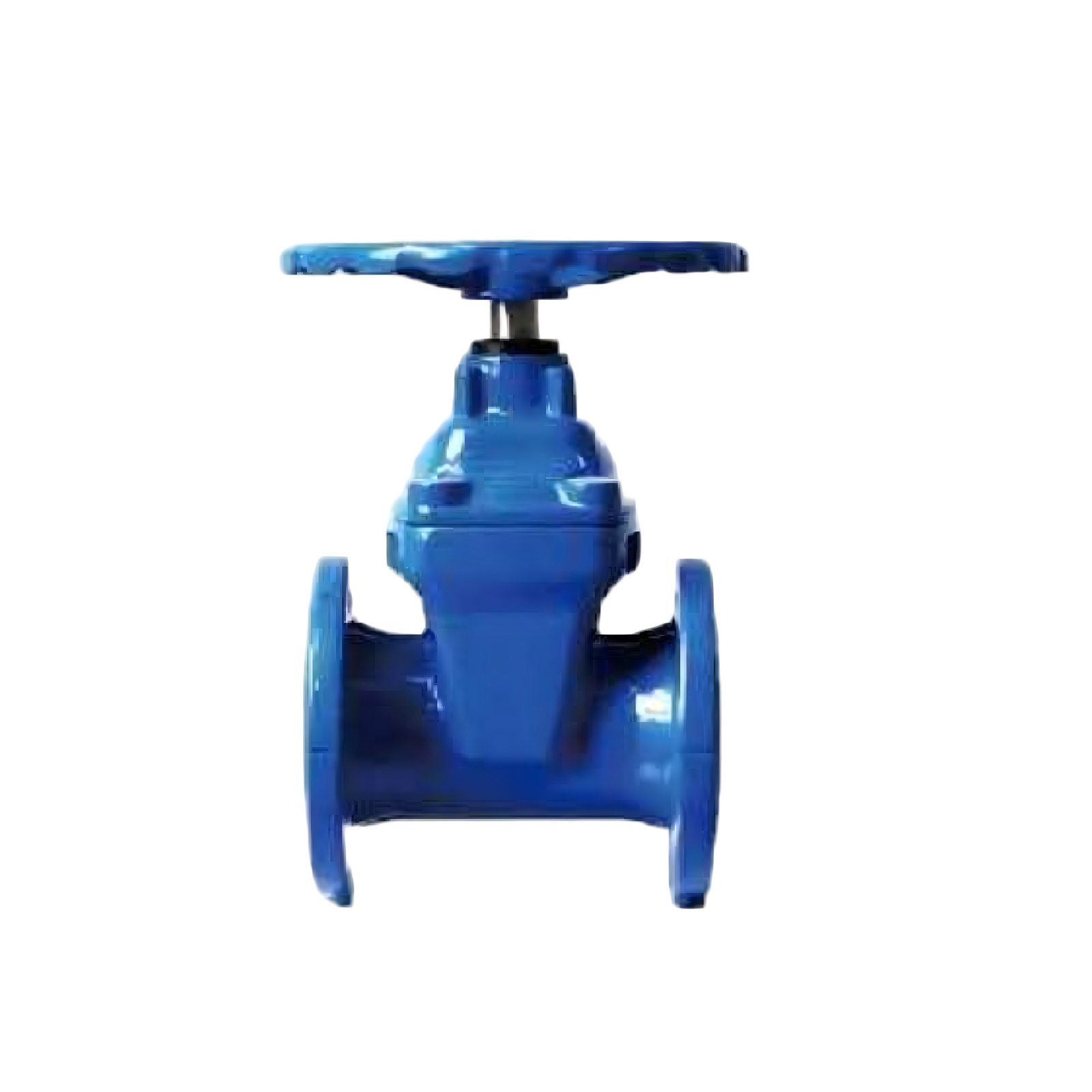

RESILIENT SEATED GATE VALVE FLANGED TYPE
Xiamen Uliveto’s Resilient Seated Gate Valve Flanged Type features elastic seat design for excellent sealing and leak-proof performance. Complying with ANSI/DIN standards, made of high-quality stainless steel/cast steel, it is flange-connected for easy installation, suitable for water treatment, industrial pipelines. OEM/ODM services and factory direct supply are available.
